Smart Home Automation Control Panel, Wall Touchscreen

Smart Home Automation Control Panel UAE: WiFi Touchscreen Gateway with Zigbee

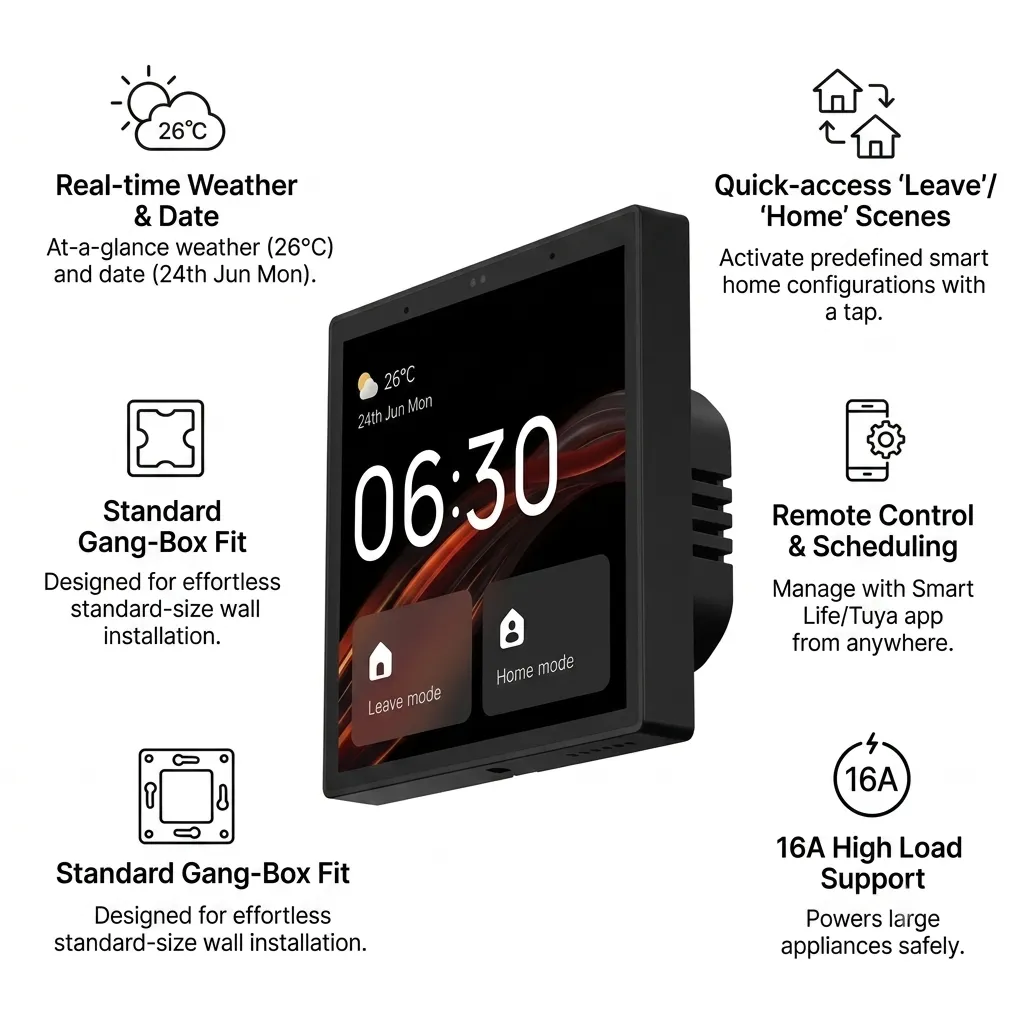

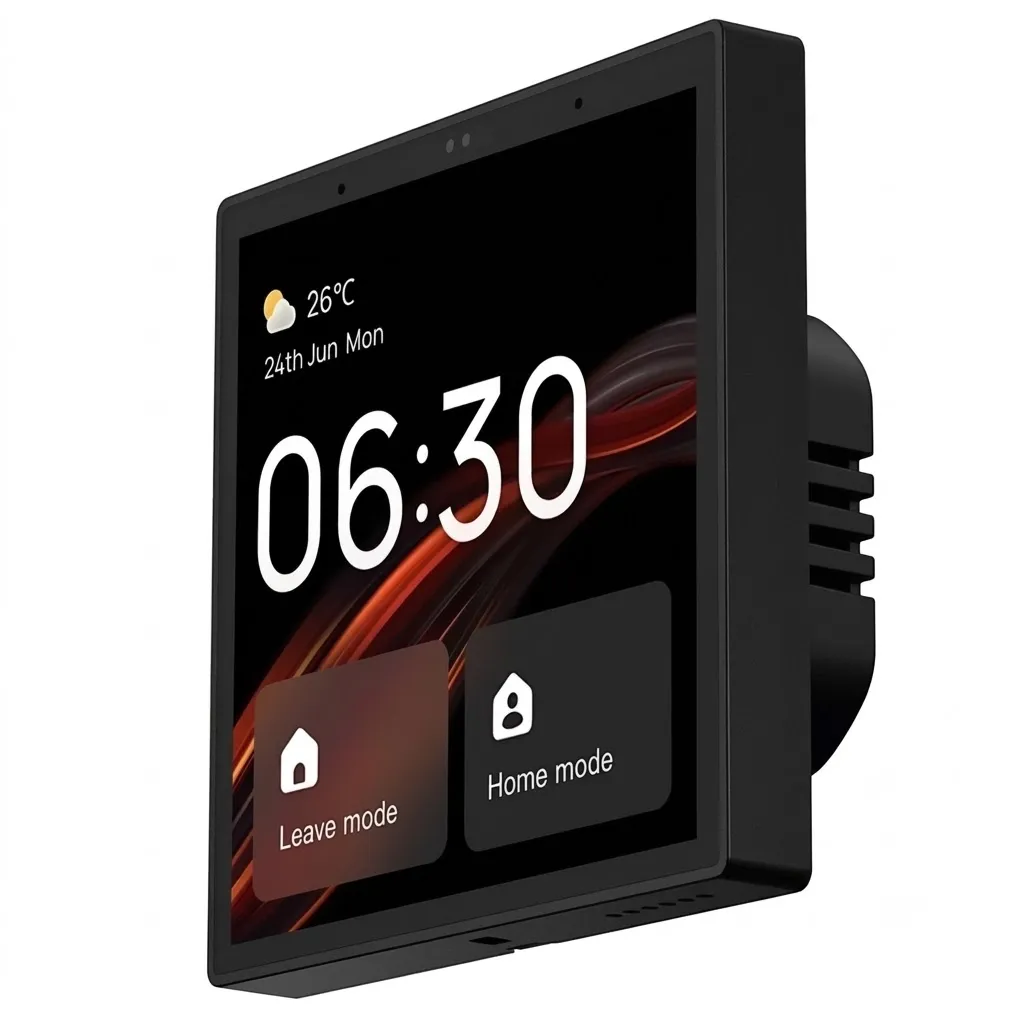

The smart home automation control panel UAE is a wall-mounted 4-inch HD touchscreen that centralizes control of all your connected smart devices, from lighting and air conditioning to fans and entertainment systems. With built-in Zigbee, WiFi connectivity, and voice command support for Alexa and Google Home, you replace a dozen smartphone apps with one elegant interface.

Why a Smart Home Automation Control Panel Works in UAE Homes

In UAE apartments and villas, managing multiple smart devices across different apps drains your phone battery and breaks the smart home experience. A dedicated touchscreen panel on your wall becomes the command center for your entire home, accessible to all family members instantly. The Zigbee gateway means you can connect affordable Tuya sensors and switches without a separate hub, saving on wiring and cost. During the hot season, automated cooling scenes (triggered by occupancy sensors) cut energy consumption by 18-32% compared to manual control.

Key Features and Benefits

• 4-inch HD touchscreen with multi-touch responsiveness and ambient light sensor for auto-dimming in direct sunlight
• Built-in Zigbee gateway connects low-power wireless Tuya devices without a separate hub
• WiFi 2.4GHz connectivity for remote control and scene management from anywhere
• Pre-programmed scenes: morning (lights on, blinds open), movie (lights down, AC to 21C), sleep (all lights off, locks armed)
• Voice commands via Amazon Alexa or Google Assistant for hands-free control
• Fits standard 86mm wall box used across UAE wall installations
• Dual-array microphone with noise reduction for clear voice input even with AC running

Specifications

Works With Your Smart Home

Where This Smart Home Automation Control Panel Works Best

• Main hallway or living room entry as the family’s central command point
• Master bedroom as a bedside morning routine and sleep scene controller
• Home office to toggle work lights, fan speed, and meeting ambiance with one tap
• Smart villas with multiple zones, using the panel to switch between entertainment, security, and energy-saving scenes
• Luxury apartments where guests can access common scenes without knowing individual device credentials

Installation and Setup

1. Choose a central location on your wall (living room, hallway, or master bedroom) at eye height, ideally not in direct sunlight
2. Turn off power at the circuit breaker and verify the wall location has a standard 86mm box or prepare one
3. Run a neutral and earth wire to the box (the panel requires zero-volts for safety and operation)
4. Mount the panel frame into the box and secure with the provided screws
5. Connect earth (green/yellow), neutral (blue), and live (brown) wires to the terminal block on the panel
6. Restore power and wait 30 seconds for the panel to boot (screen will show Tuya logo)
7. Once powered, press the QR code button on the back and scan it with the Tuya Smart Life app on your phone
8. Select your home WiFi and join the panel to your network
9. Add connected devices (lights, switches, locks, etc.) one by one through the app
10. Create scenes by bundling commands (e.g. “Morning” turns lights to 30%, opens blinds, sets AC to 22C)
11. Link your Amazon Alexa or Google Home account to the app for voice control
12. Test voice commands: “Alexa, activate goodnight scene” or “Google, set my AC to 20 degrees”

Professional installation ensures proper wiring and integration with your home’s electrical system. Our UAE team can handle the full setup and connect existing devices. Learn more about our installation service or request a free site survey.

Frequently Asked Questions

Can the smart home automation control panel UAE replace my light switches?

Not directly. The panel controls smart switches and smart bulbs that are already installed or wired into your system. For a full replacement, you would install smart switches alongside the panel, then control them all from the touchscreen. Our team can advise on the best retrofit strategy for your villa or apartment.

What happens if the touchscreen fails?

The built-in Zigbee gateway continues to work, and you can still control devices through the Tuya Smart Life mobile app or voice command. Devices with physical buttons (like light switches) will continue to operate normally. If the screen itself needs replacement, contact our support or return to our service center.

Will the panel work during a WiFi outage?

Yes. The Zigbee gateway and physical touchscreen will continue to control Zigbee-connected devices even if WiFi drops. Remote access via the mobile app will not work until WiFi is restored. Voice commands via Alexa or Google Home will also be unavailable offline.

Can I mount the panel outdoors, like on a patio wall?

No. The panel is rated for indoor use only. Outdoor moisture and temperature extremes will damage the electronics. For covered outdoor areas (majlis or pergola), consider a weatherproof WiFi switch or sensor instead.
